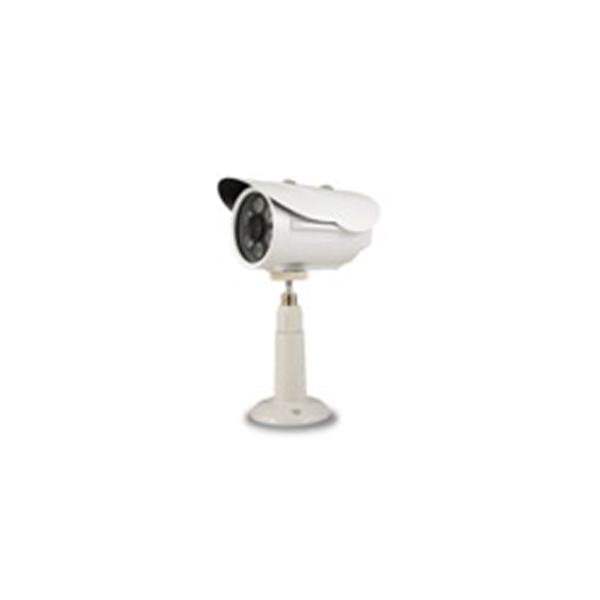

ID-BL1301
加入詢問車
產品說明
| Camera Model Name | ID-BL1301C | |
| Image Sensor | OV4689 | |
| Sensor Resolutions | 4 Megapixel | |
| Max Video Resolution | 2592*1520 | |
| Sensitivity | 0.01Lux/0Lux(IR on) | |
| Lens(standard) | 4mm 4MP/F2.0 | |
| Lens(optional) | 2.8mm/6mm/8mm 4MP/F2.0 | |
| Support DC IRIS | NO | |
| Support Auto zoom | NO | |
| Angle of View | 72°(H) | |
| ICR | Mechanism IR cut Filter | |
| LED | 6pcs | |
| Distance(M) | 15M | |
| Video / Audio | ||
| Vido Compression | H.265 | |
| Video Profile | 2592*1520 / 2048*1520 / 1920*1080 / 1280*720 / D1 / CIF | |
| Frame Rate | Up to 15/12 fps @ 2592*1520 | |
| 30/25 fps @ 2048*1520 | ||
| 30/25 fps @ 1920*1080 | ||
| 30/25 fps @ 1280*720 | ||
| 30/25 fps @ D1 / CIF | ||
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness,Shutter Time, Mirror, Fip ,Motion | |
| WDR, Day & Night adjustment, 2D/3D Denoise,BLC,DeFog,AWB. | ||
| Video Bitrates Adjust | CBR | |
| Channel Control | RS-232 serial data communications | |
| General | ||
| CPU | Multimedia SoC Hi3516D | |
| RAM | 4Gb | |
| Flash | 128MB | |
| Power Consumption | TBD | |
| Water Resistance | IP66 | |
| Operation Temperature | -10℃～+50℃ | |
